Cable routing could be the trickiest part of the entire process but can be manageable following these principles:
1) the flat cables are designed to be concealed inside the grooves on the inner side of the aluminum bars
2) make sure the cables do not get crimped by the Body Scanner's aluminum parts which could result in connectivity issues

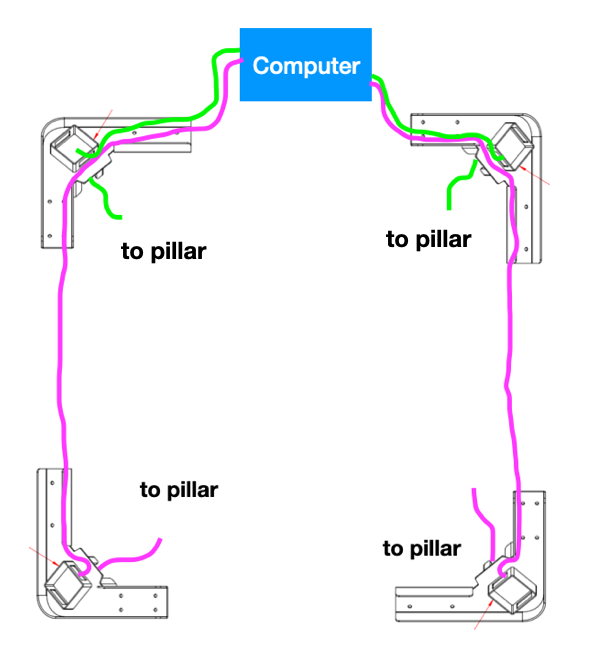

3) follow the cable routing illustrations below
* Pink indicates the longer (3m) cables
* Green indicates the shorter (1.5m) cables
* The image below indicate what the bottom side of the scanner may look like.
