ScanTag Feature Guide

Overview

ScanTag allows you to customize body measurement points. By placing marker stickers on specific areas of the customer’s body before scanning, you can manually align those points in the backend after the scan is complete—providing more flexibility and precision for custom measurements.

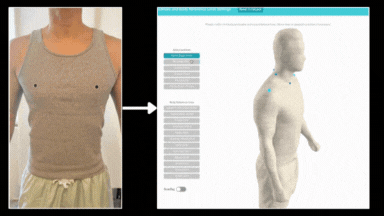

Example of Scan Tag on Mannequins

Use Cases

Customize measurement points based on your needs:

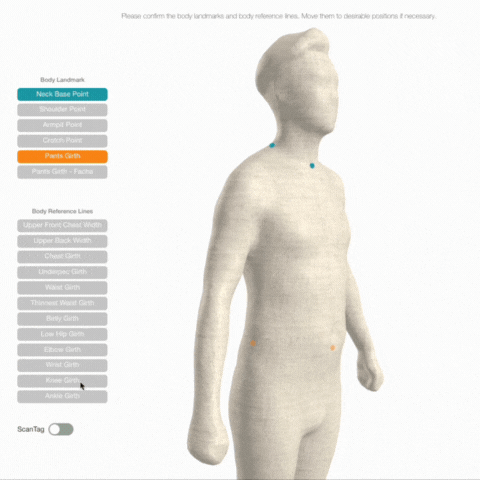

• Example 1: Custom waistline height
  If a customer prefers measurements based on their usual pant waistline, place marker stickers at the front and back waist positions. After scanning, go to the "Body Landmark Settings" page and manually align the markers to the "Pants Waist" points to reflect their actual wearing preference.

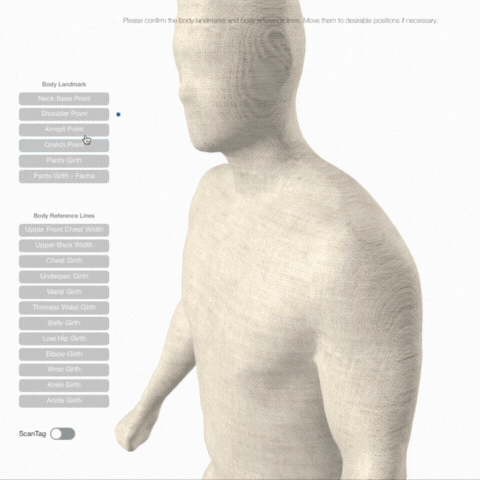

• Example 2: Custom shoulder width
  If the customer needs a personalized shoulder fit, place marker stickers on both shoulder points. After scanning, align the "Shoulder Point" markers in the "Body Landmark Settings" page to capture the custom width.

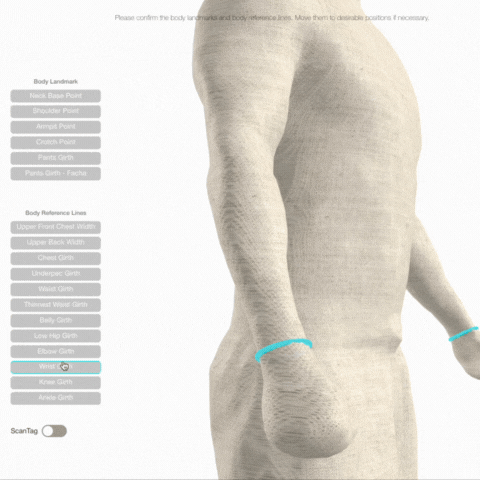

• Example 3: Sleeves and trouser lengths
  Need to match a client’s preferred sleeve or pant length? Place markers at the desired wrist and ankle points. After scanning, align the landmarks to reflect the exact lengths your client wants.



How to Use ScanTag

1. Enable the ScanTag Feature

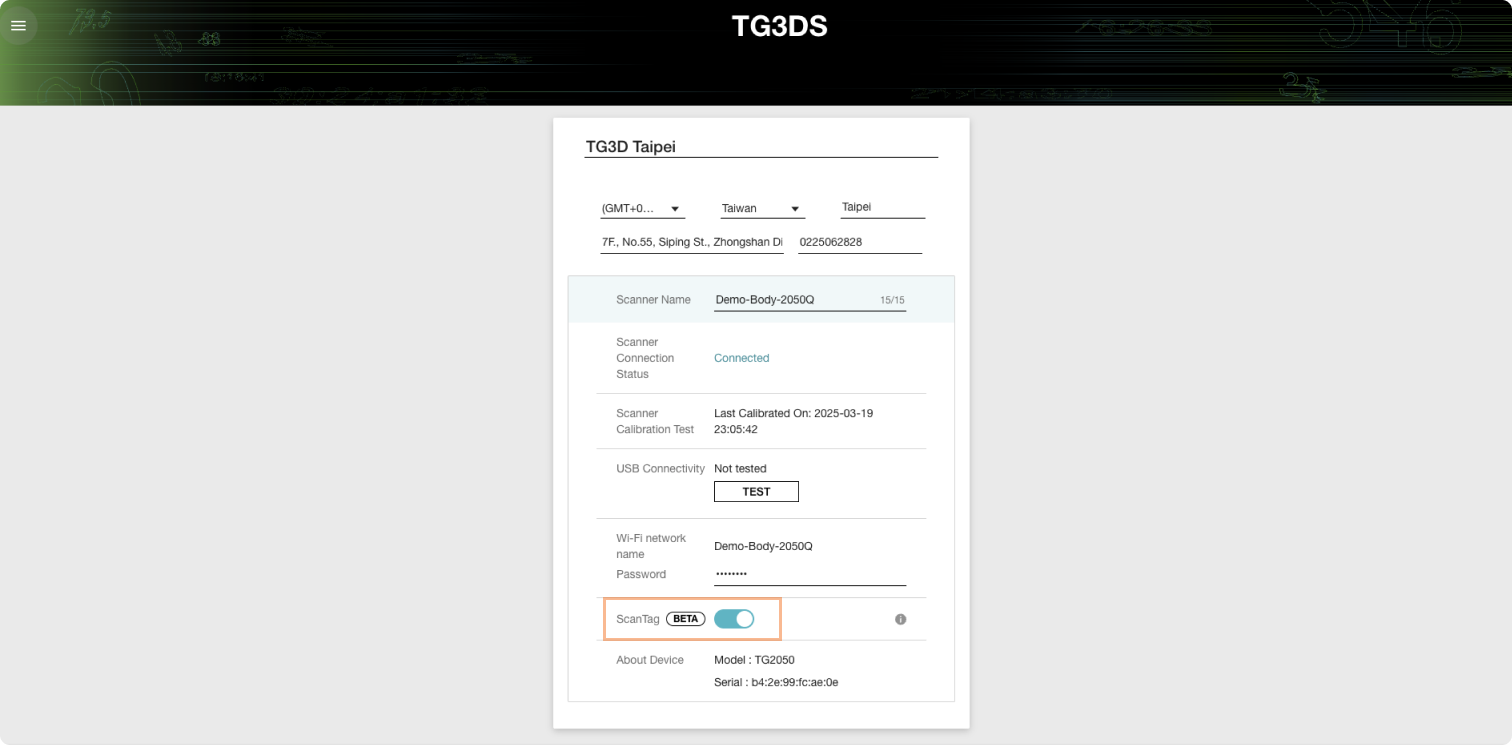

   In your MTM account, go to the side menu > Scanner Setup and make sure the ScanTag button is enabled.

2. Place markers and scan
   Place the marker stickers on the desired body areas (e.g., waistline, shoulder points), then proceed with the scan.


   • To check which body landmarks can be defined:
     Navigate to “Customer Scan Data” page > "Body Landmark Settings" page — available body parts will be listed on the left.


3. View marker dots after scan
   Once scanned, the customer’s avatar will appear on the "Body Landmark Settings" page. The placed markers will be shown as black dots on the avatar.


4. Manually align landmark points
   On the settings page, click on a body landmark you want to adjust, then drag it to the corresponding black marker dot. Once aligned, hit save. The system will auto-update the measurement values based on the new position.

Notes

• Make sure markers are placed on visible, flat areas—avoid wrinkles or clothing folds.

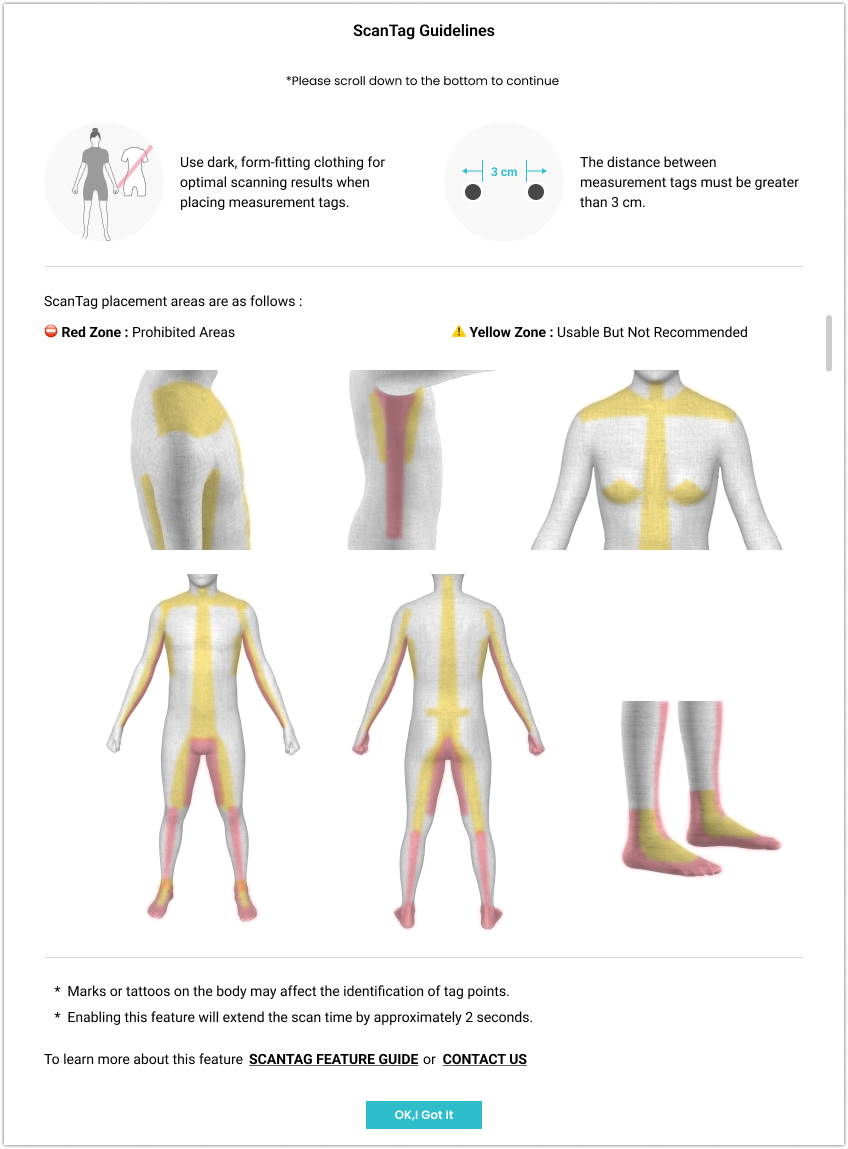

• Areas that are difficult to detect and not recommended for placement include: underarm, inner arm, and inner thigh. Follow the Scan Tag Marker Guidelines:

• The system won’t auto-align markers with landmarks—you’ll need to manually match them.

FAQs:

Where can I get marker stickers?

1. Print them yourself
   Refer to the attached file at the bottom of this article titled "Scan Tag Download File." It is in .ai format.
2. Order from us.
   If you need pre-made marker stickers, please contact [e-mail].

Marker Printing Specifications

1. Shape & Size
   • Shape: Circle
   • Diameter: 1.5 cm


2. Material
   • Paper Type: White-coated sticker paper
   • Surface Finish: Matte lamination
     ⭢ We recommend using stickers with a matte protective film to prevent glare, which can interfere with scan accuracy.


3. Color Settings
   • Outer circle: White (#FFFFFF, CMYK: 0, 0, 0, 0)
   • Inner dot: Black (#000000, CMYK: 0, 0, 0, 100)


4. Download File
   • Download ScanTag.ai

5. Printing Tips
   • For best results, have the stickers professionally printed and provide the specs above (size, material, finish, and color settings) to your print vendor.
